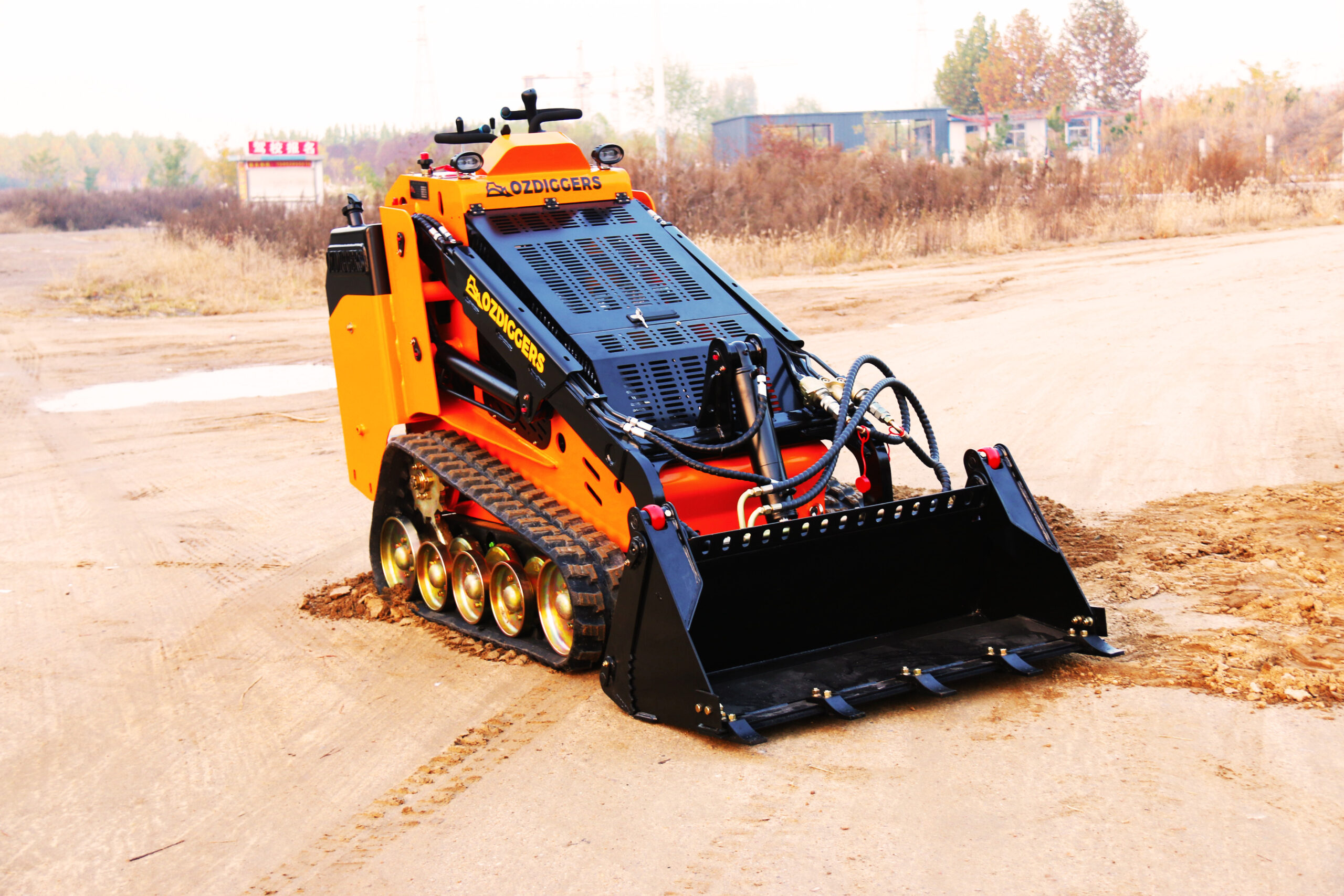

OZ-580T Mini Skid Steer Loader
$29,999.00
The OZ-580T is the diesel tracked version of the OzDiggers Mini Skid Steer Loader — reliable, safe and built for Australia’s most demanding environments. Powered by a 25HP Kubota diesel engine with a 454kg rated operational capacity.
Purchase online and collect from Riverstone Mower World. We will contact you when your order is ready for collection.
Delivery is available. Freight costs vary depending on the product, delivery location and delivery requirements. Please request a delivery quote and our team will confirm the delivery cost and arrangements with you.
Request a delivery quoteDescription
Available to Order
The OZ-580T is the diesel tracked version of the Mini Skid Steer Loader. It is reliable, safe and built to deliver maximum performance for Australia’s most demanding environments. Designed by Australians, for Australians, OzDiggers Mini Skid Steer Loaders are for those who like to get it done, and get it done right.
Our diesel model is available in tracked and wheel configurations with a powerful Kubota diesel engine, or as a petrol wheeled configuration, powered by a Briggs & Stratton Vanguard petrol engine.
Additional information
| Brand | OZ Diggers, OzDiggers |
|---|
Model: OZ-580T Tracked Diesel
Engine: Kubota D1703-M (water-cooled 4-cycle 3-cylinder diesel, EPA Tier 4)
Fuel type: Diesel
Engine power (SAE J1995 gross): 25 HP
Total displacement: 1.65 L (100.5 cu in)
Rated speed: 2,200 rpm
Low idling speed: 1,100 rpm
Overall length (without bucket): 2220 mm (87.4 in)
Overall height: 1585 mm (62.4 in)
Overall width: 1067 mm (42 in)
Wheelbase: 1085 mm (42.7 in)
Hinge pin height at max. lift: 2098 mm (82.6 in)
Operating weight: 1347 kg (2970 lb)
Tipping load: 1296 kg (2857 lb)
Rated operating capacity (35%): 454 kg (1000 lb)
Track width: 198 mm (7.8 in)
Ground clearance: 94 mm (3.7 in)
Angle of departure: 27°
Attachment mounting system: CII (Common Industry Interface)
Travel speed (fwd/rev): 7.95 km/h (4.94 mph)
Battery capacity: 12V, 60Ah
Auxiliary hydraulic flow: 48 L/min (12.68 gal/min)
Fuel tank capacity: 35 L (9.25 gal)
Hydraulic system: 35 L (9.25 gal)
Delivery & collection
Available to Order. This machine is built to order and delivered by freight. Please contact Riverstone Mower World to confirm current lead time, freight and pre-delivery preparation for your location.
